Rotary Kelly

Rotary Kelly
Product description: Kelly is main driver of the whole drill string. It transmits torsional energy from the rotary table through the drill string to the bit at the bottom of the hole.
INQUIRY

Features and Benefits

● Manufactured from AISI 4145H-modified, fully heat-treated alloy steel with a Brinell hardness range of 285-341BHn and a minimum average Charpy impact value of 40 ft-lbs;

● Ends and drive sections, IDs and connections machined and inspected to API specifications;

● Ultrasonic inspection is performed on all sections;

● Shipped in a protective steel-cased scabbard;

When ordering please specify:

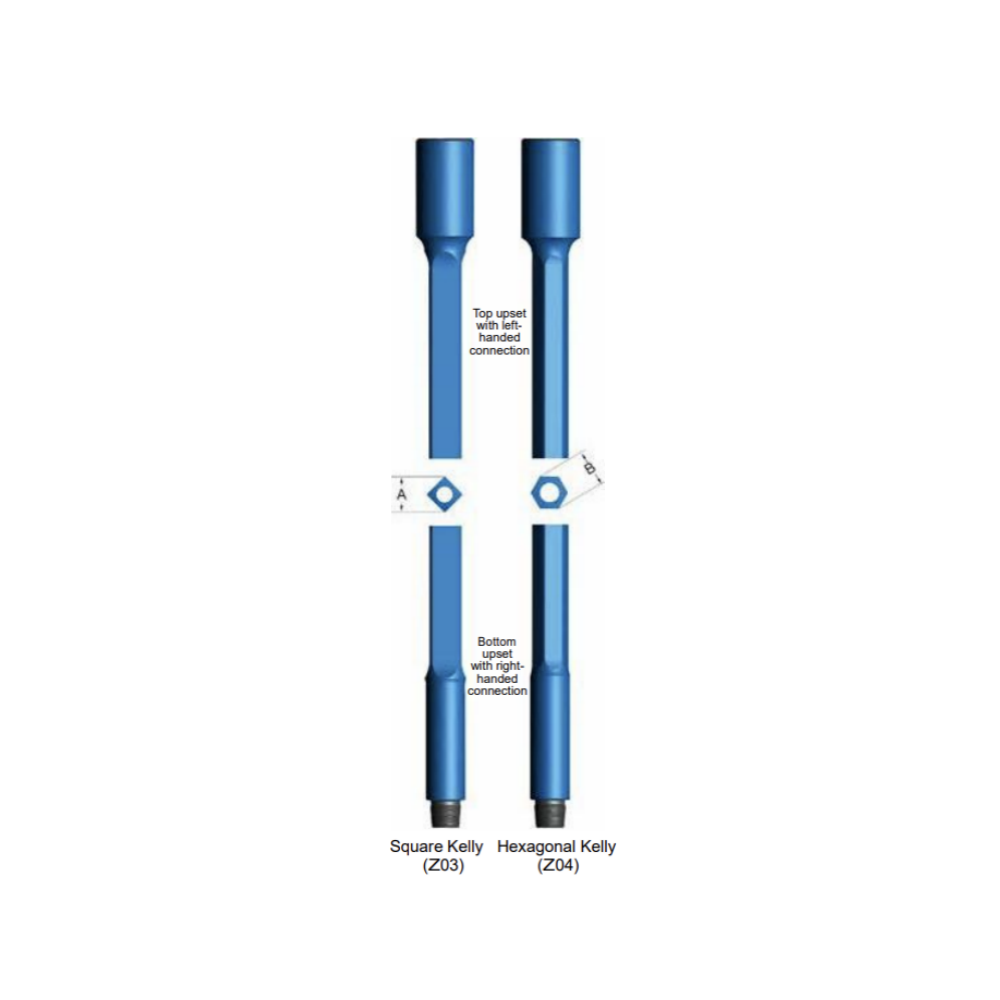

● Kelly type (square or hexagonal);

● nominal size and overall length;

● Upper and lower connections.
