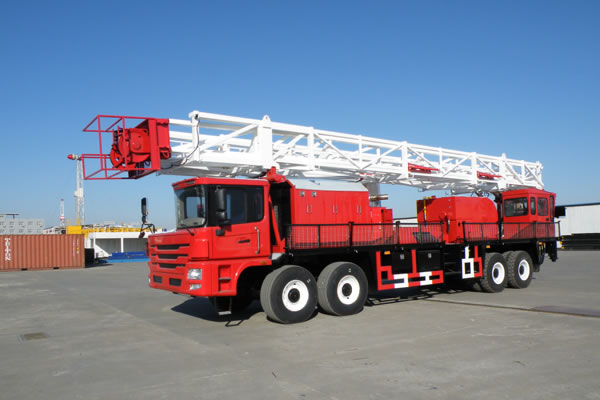

truck mounted drill rig is a type of light truck mounted drilling rig self-developed by our company. Through years of technology innovation and continuous improvement, it has become more mature and reliable. It is used for drilling operation of shallow wells which is less than 1000m, overhaul operations of oil and gas wells and water well drilling operations.

Features

1. Hydraulic well drilling rig is the minimum level model for shallow well drilling, suitable for drilling and work-over operation, also can be used for water well drilling operation.
2. CAT/ Cummins series diesel engine can be used.
3. Truck mounted drill rig is equipped with ALLISON hydraulic transmission box. Domestic hydraulic transmission box is also optional.
4. 10×8 petroleum-purposed vehicle chassis for double drum truck mounted drilling rig. 8×8 chassis for single drum truck mounted drilling rig.
5. The main brake for the draw-works can be band brake or disc brake, the auxiliary brake can be Eaton pneumatic water cooled disc brake or water brake.
6. Adopting a number of patented technologies, the product now is with the features of reasonable layout, reliable operation performance and low transportation cost, easy for on-site installation and maintenance.

Technical Parameters of Truck Mounted Drill Rig

Item	Name	Parameter
1	Drilling depth(41/2″Drill Pipe) m	1000
2	Overhaul depth(31/2″Drill Pipe) m	2500
3	Max. hook load KN	900
4	Hook speed (m/s)	0.2 to 1.4
5	Mast (m)	29/31
6	Mast type	A-mast
7	Engine power (kW)	261
8	Hydraulic transmission box	4700 OFSR
9	Transmission type of hydraulic well drilling rig	Hydraulic + Mechanical
10	Traveling system	4 × 3
11	Main rope diameter (mm)	φ26
12	Hook Block model	YG90
13	Swivel model of truck mounted drill rig	SL110
14	Rotary table model	ZP175
15	Chassis model	XDP40/8 × 6
16	Approach / departure angle	22°/18°
17	Min. ground clearance(mm)	311
18	Max. gradeability	26%
19	Min. turning diameter (m)	28
20	Overall dimension (m)	16.7 × 3.05 × 4.2
21	Main unit mass (kg)	50000
